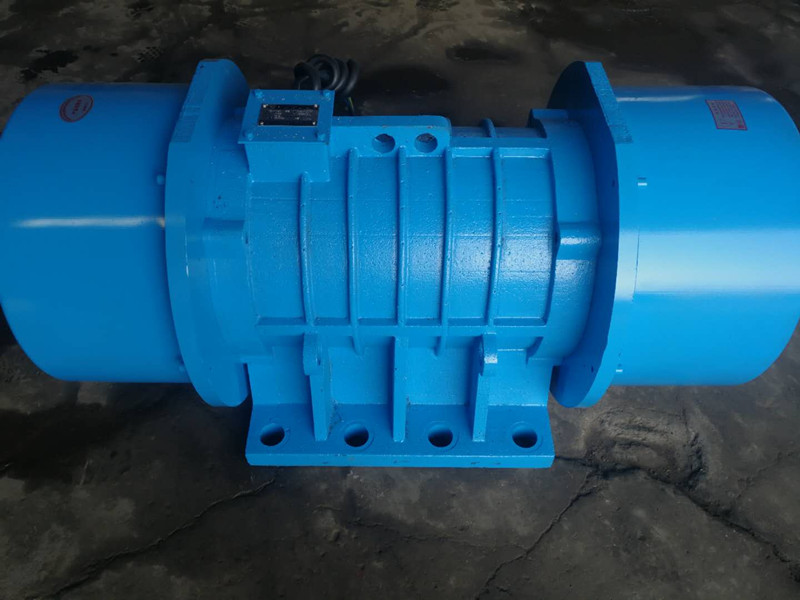

xvm振動電機詳細說明　1）此型號振動電機系采用先進技術設計生產的振動電機。

詳細介紹：

2）先進的設計技術：所有參數的計算及其優化設計均由計算機工作站全面完成。精密的加工工藝、嚴格的質量體系，保證了振動電機工作狀態下各部件配合、承力在最佳范圍內。

3）特殊的電磁設計：振動電機所需要配置的定、轉子均采用具有優質導磁性能的硅鋼片，減少鐵芯的渦流損耗，保證強大的起動力矩，可快速達到額定運轉速度。

4）重載型軸承設計：所采用軸承均為重載型特制軸承，足以承受和傳遞徑向激振力和軸向負荷，并有良好的散熱能力。雙重密封設計，保證在嚴重粉塵環境下的軸承室清潔。選用進口耐高溫軸承鋰基脂潤滑油，延長軸承使用壽命。

5）無極調節：振動電機兩端的激振塊上標有精確的刻度盤，可以非常容易的調節激振力及工作力矩從零到最大的無極調節，滿足工作需要。

6)。xvm振動電機的設計可適用于各種標準電壓及頻率的三相交流電源，如適用于中國、歐洲的220/380v、50hz電壓等級；美國的230/460v、60hz電壓等級；日本的220v、50/60hz電壓等級等，能應用于世界各地。還可適用各種電氣制動方式，如能耗制動、反接制動等。

  xvm振動電機外形及安裝尺寸

型號振次r.p.m最大激振力功率電流功率因數效率起動電流倍數重量圖號外型及安裝尺寸

(mm)緊固螺栓abcdefghjkm[n][kw][kg]xvm0.7-22870
